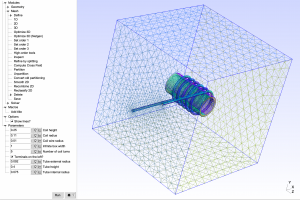

Gmsh 4.15.0

Gmsh is a robust open-source 3D finite element mesh generator developed by Christophe Geuzaine and Jean-Francois Remacle. It is designed to provide a comprehensive solution for the generation of high-quality meshes, which are essential for numerical simulations in computational engineering and scientific research. Gmsh stands out for its versatility, offering a wide range of features that cater to both novice users and advanced practitioners.

At its core, Gmsh is built around a powerful scripting language that allows for the automation of complex mesh generation tasks. This scripting capability is complemented by an intuitive graphical user interface (GUI), which makes it accessible to users who prefer a more visual approach to mesh creation. The software supports the creation of both structured and unstructured meshes in two and three dimensions, making it suitable for a variety of applications across different fields.

One of the key features of Gmsh is its ability to handle complex geometries through its built-in geometry kernel. Users can define geometries using a combination of points, lines, surfaces, and volumes, or import them from standard CAD formats. The software also provides tools for refining and optimizing meshes, ensuring that they meet the specific requirements of the simulation at hand.

Gmsh is equipped with advanced features such as boundary layer meshing, transfinite meshing, and support for various element types, including tetrahedra, hexahedra, prisms, and pyramids. Additionally, it offers a range of post-processing tools that enable users to visualize and analyze simulation results directly within the software.

The software is highly customizable, allowing users to extend its functionality through plugins and integrate it with other computational tools. Its open-source nature ensures that it is continuously updated and improved by a vibrant community of developers and users, fostering an environment of collaboration and innovation.

Gmsh is compatible with multiple operating systems, including Windows, macOS, and Linux, and supports a wide range of output formats, ensuring seamless integration with popular finite element analysis software. Its comprehensive documentation and active user community provide valuable resources for troubleshooting and learning, making it an ideal choice for both educational and professional settings.

In summary, Gmsh is a versatile and powerful tool for finite element mesh generation, offering a blend of advanced features, ease of use, and customization options. Whether you are conducting research, teaching, or working on industrial applications, Gmsh provides the tools necessary to create precise and efficient meshes for your computational needs.

Release notes:

New Release
New Closest, Parametric Point and Normal parser functions; changed Boundary and CombinedBoundary parser functions to not return signed entity tags anymore (use new OrientedBoundary and OrientedCombinedBoundary to get the old behavior); changed default value of oriented argument to false in model/getBoundary API; new fltk/run() option to automatically load/save options between runs; improved Constant and Restrict mesh size fields; reverted curve drawing to use fixed number of subdivisions; levelset-based plugins now take entity visibility into account; bug fixes.
New API functions: model/isEntityOrphan, occ/getClosestEntities
Incompatible API changes: new arguments to algorithm/tetrahedralize and fltk/run
[ Gmsh full changelog ]
